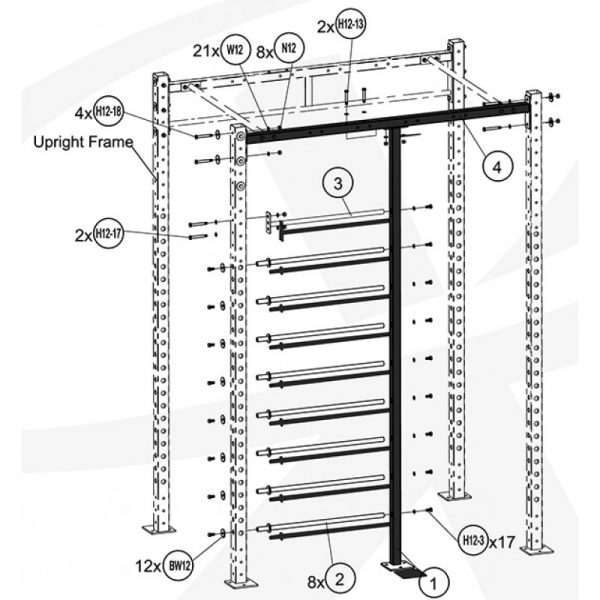

Specification:
Tubing: 50mm x 50mm /3 mm thick.
Ladder Upright (1): 2640mm (x1).
Ladder Bar (2): 790mm (x8).
Top Ladder Bar (3): 720mm (x1).
Long Cross Frame – Single (4): 1782mm (x1).
Hex Head Bolt (H12-3): M12 x 25mm (x17).
Hex Head Bolt (H12-13): M12 x 75mm (x2).
Hex Head Bolt (H12-17): M12 x 95mm (x2).
Hex Head Bolt (H12-18): M12 x 100mm (x4).
Big Washer (BW12): M12 (x12).
Washer (W12): M12 (x21).
Nut (N12): M12 (x8).
